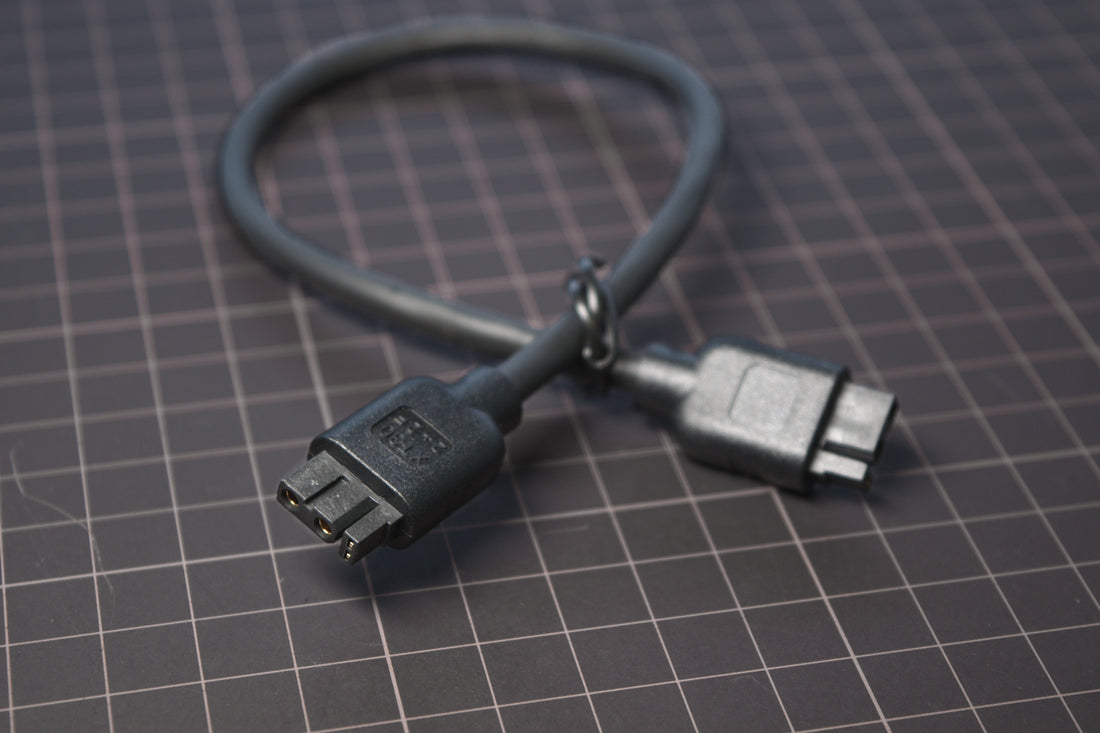

CANBUS Stepper Interconnect Cable

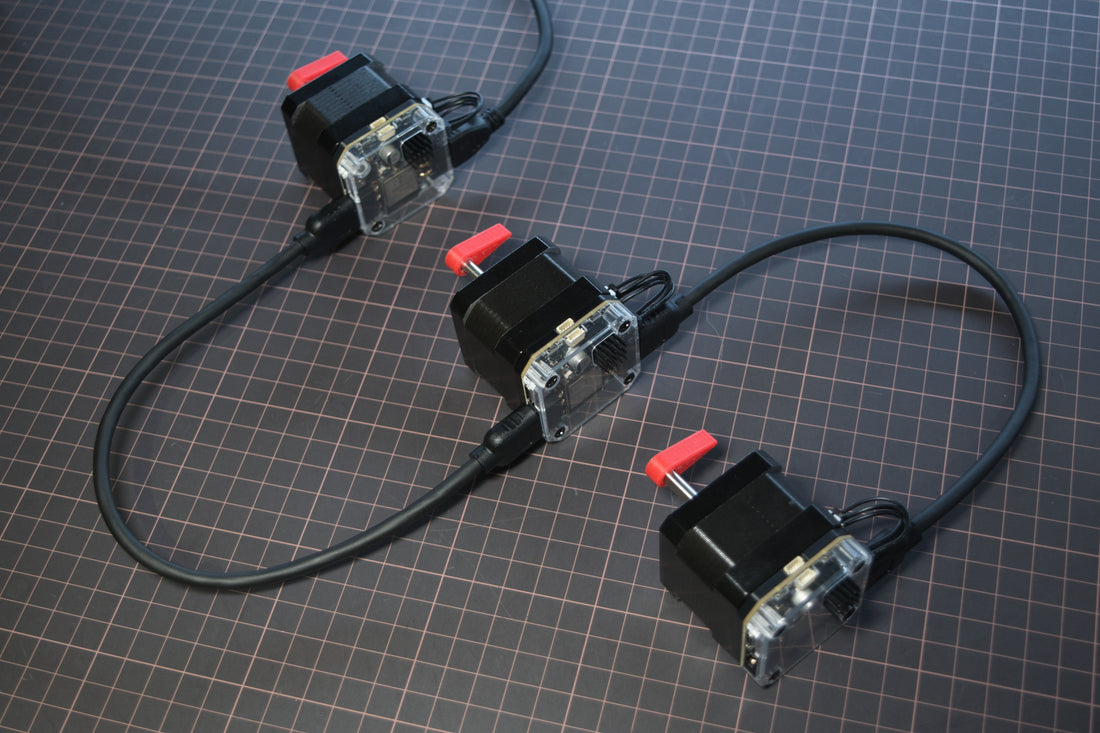

Over molded cable for daisy chaining CANBUS Stepper drivers.

This 4 core cable has both power and CAN conductors inside a single cable.

Specs:

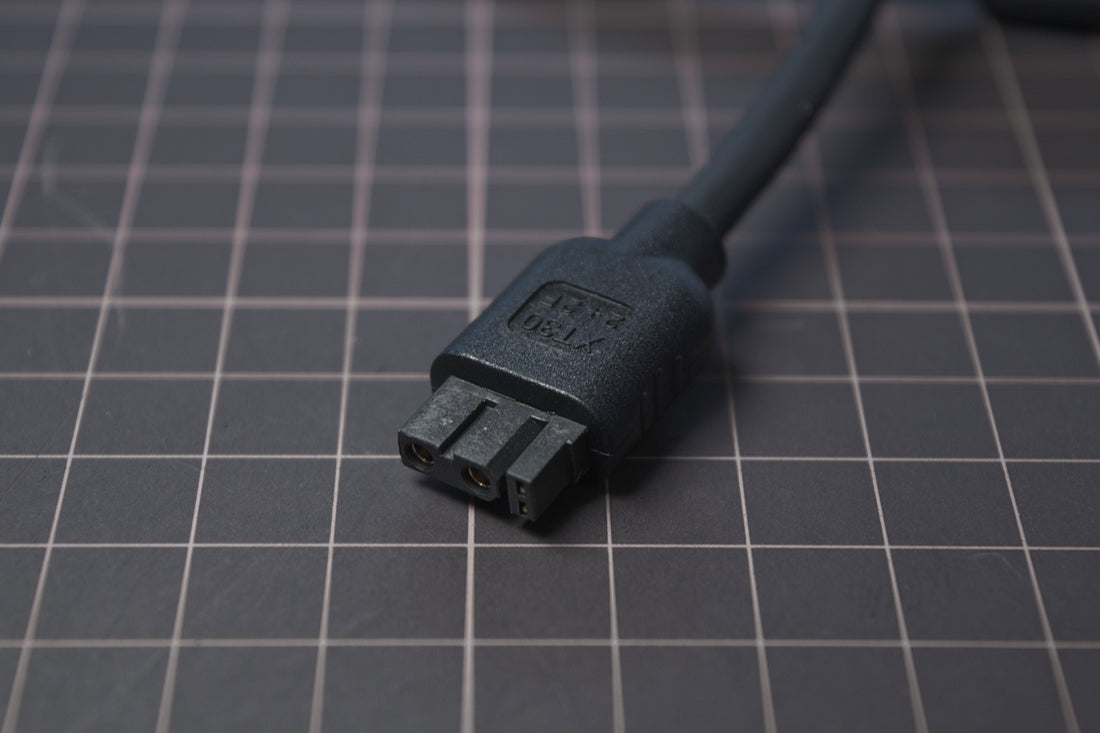

• Connector: XT30(2+2) Female
• Power Wire: 18 AWG

• CAN Wire: 24 AWG twisted pair

• Diameter: 5.2mm

• Insulation: PVC



To power the first node on a chain you can use a standard female XT30 connector (or a DC barrel jack adapter such as this one)

Note: This is for the newer V2 CANBUS Stepper boards. Please use the contact page if you would like a cable to adapt an older V1 connectors to the new V2 boards.
