USB 3.2 PD Hub 240W

COMING SOON

This 4 port USB-C hub supports 10Gbps data and 60W USB PD Power on all 4 downstream ports simultaneously. This allows you to charge/power devices whilst doing data transfer at the same time. No more choosing between a USB charger and USB Hub!

Features:
- 60W USB PD on DFP's (Downstream Facing Port)
- USB 3.2 Gen 2x1 on all ports (10Gbps)
- Fully independent USB PD per port (no re-negotiation on connects).
- Detachable host cable (USB-C).

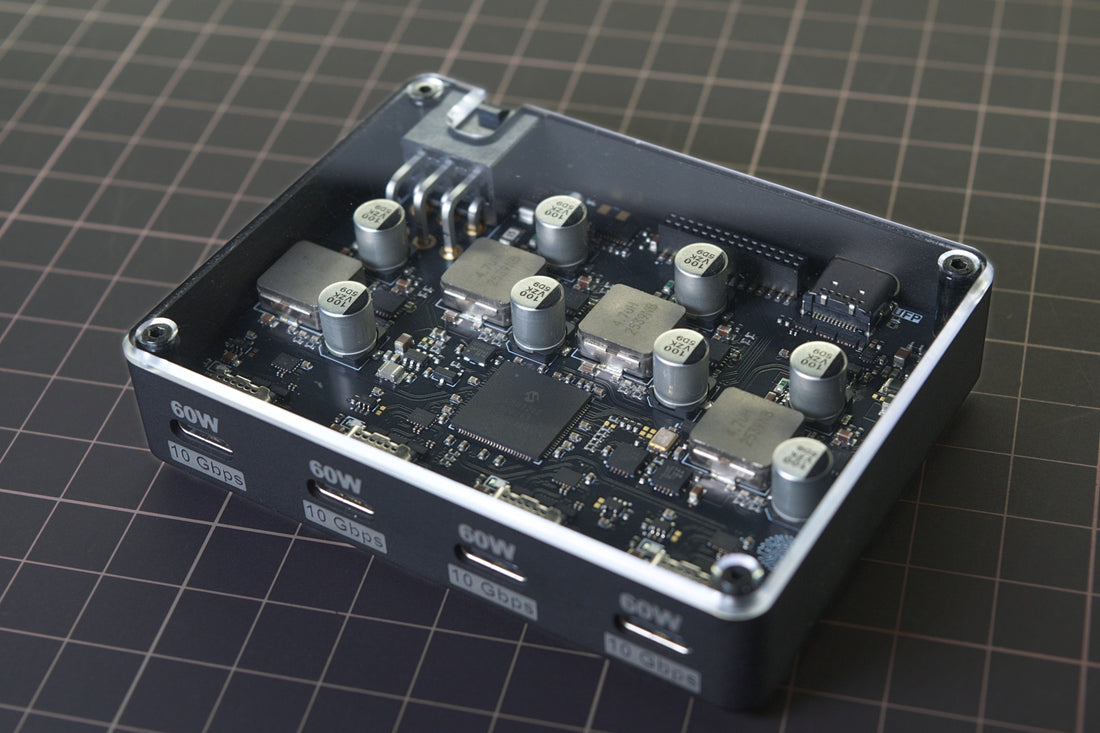

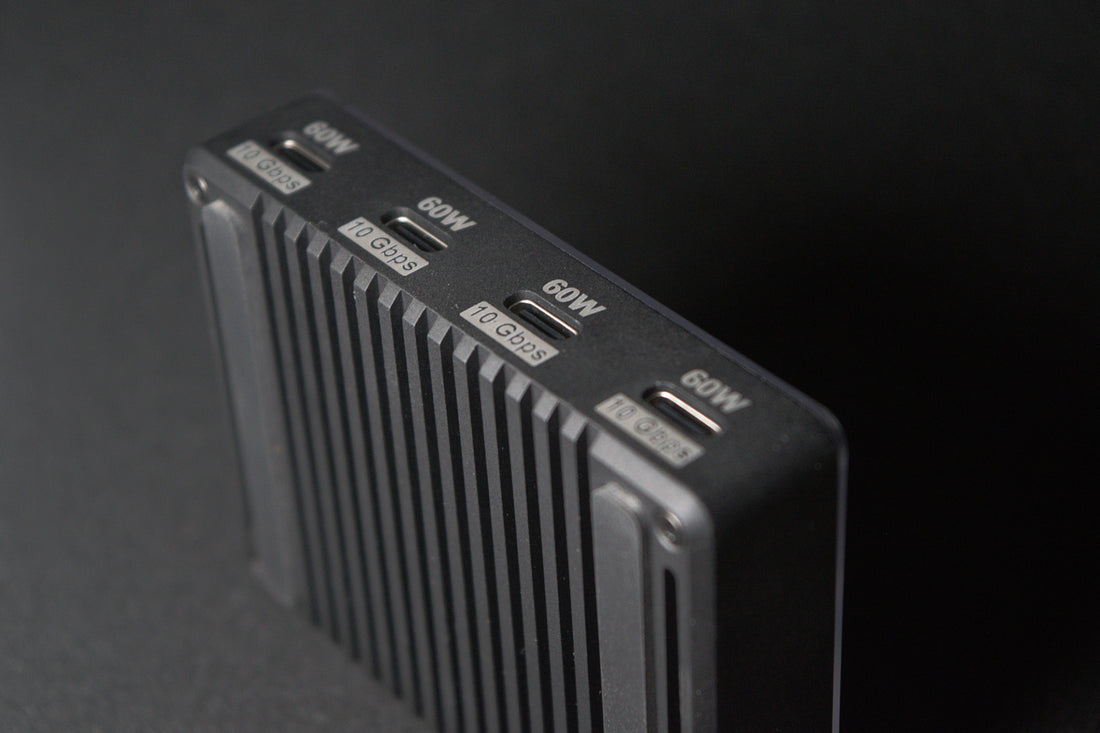

- Machined aluminium housing with integrated heatsink.
- Expansion connector.
- Over voltage, ESD and over current protection.
- Non-slip silicone feet.
- Port power LEDs.

Output:
- USB PD:
    5V ⎓ 3A
    9V ⎓ 3A
    12V ⎓ 3A
    15V ⎓ 3A
    20V ⎓ 3A
- USB PPS:
    3.3-11V ⎓ 3A
    3.3-21V ⎓ 3A

Input:
- 24V 11.5A

Lots of multi-port chargers will re-negotioate power delivery when a second device is connected. This would interrupt any data transfer happening as well as often reducing the output voltage and power to share a common power supply. This hub allows full 60W power on all ports simultaneously for upto 240W output power, with no power interruptions when a new device is connected.

The expansion connector allows your hub to be upgraded in the future. The connector pinout and CAD will be published so the community can create their own modules.
Possible add ons include but are not limited to:
- Display to show port power
- IoT control and monitoring of power
- Power sharing
- Additional USB 2.0 Ports

Note: Displayport alt mode not supported.
