PD Stepper

$66.00 USD

Sale Sold out

Quantity

BACK ORDER - Kits are temporarily on back order due to recent high demand. Estimated ship date for new orders is the 12th of December 2025.

For US based customers full kits are in stock and available through SparkFun.

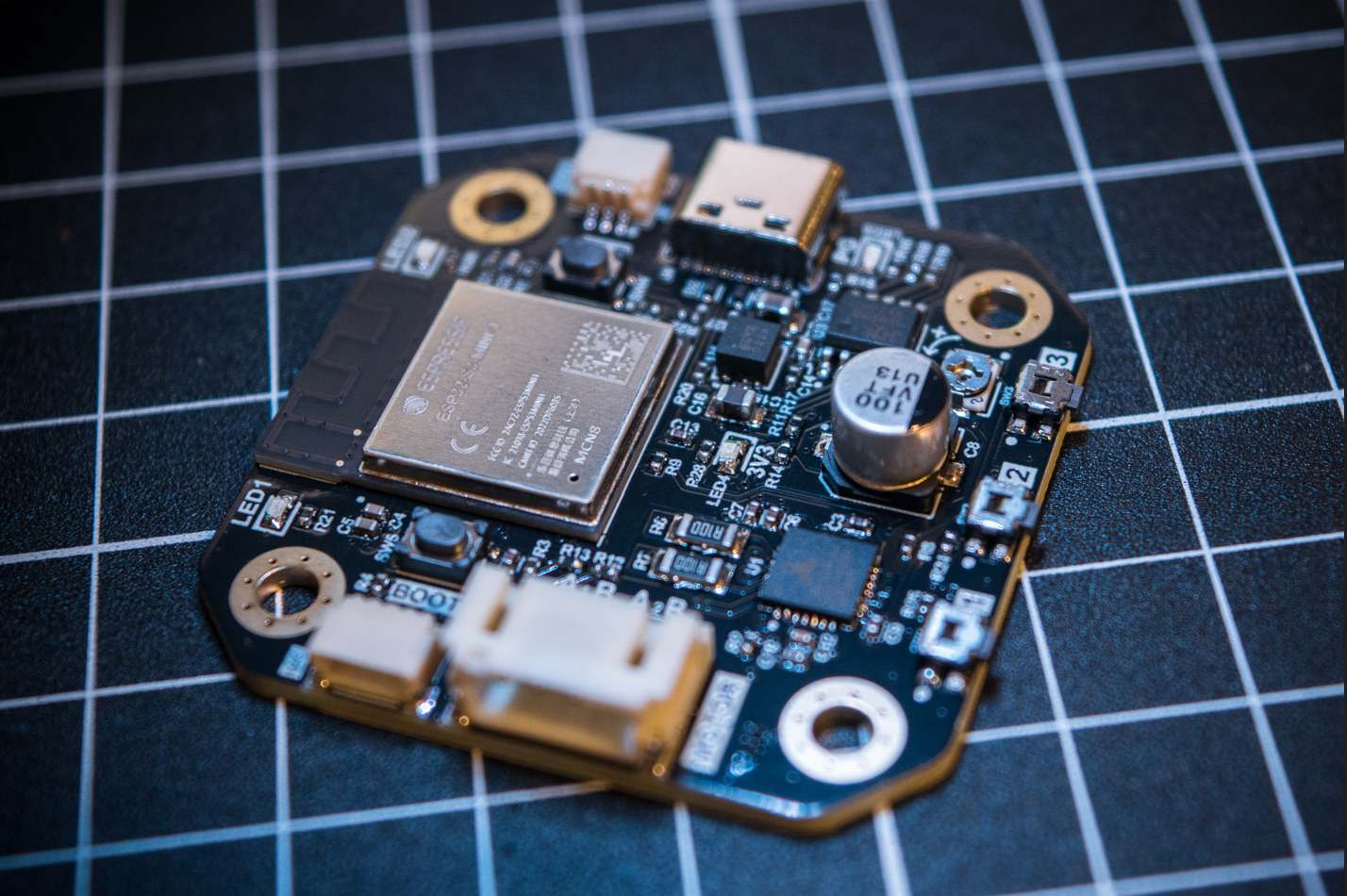

PD Stepper - USB PD Closed Loop Stepper Driver & Controller

PD Stepper is a USB PD Powered Nema 17 stepper driver using the Silent Trinamic Driver TMC2209 controlled with a ESP32-S3 for IoT and other applications.

Stepper motors are fantastic for projects, but assembling the necessary components like a microcontroller, stepper driver, power supplies and optionally an encoder can be a hassle. This often leads to bulkiness, higher costs, added complexity, and difficulty fitting everything into compact or space-constrained designs. The PD Stepper addresses these issues by consolidating everything onto a single board, eliminating the drawbacks with little to no compromises.

What's Included:

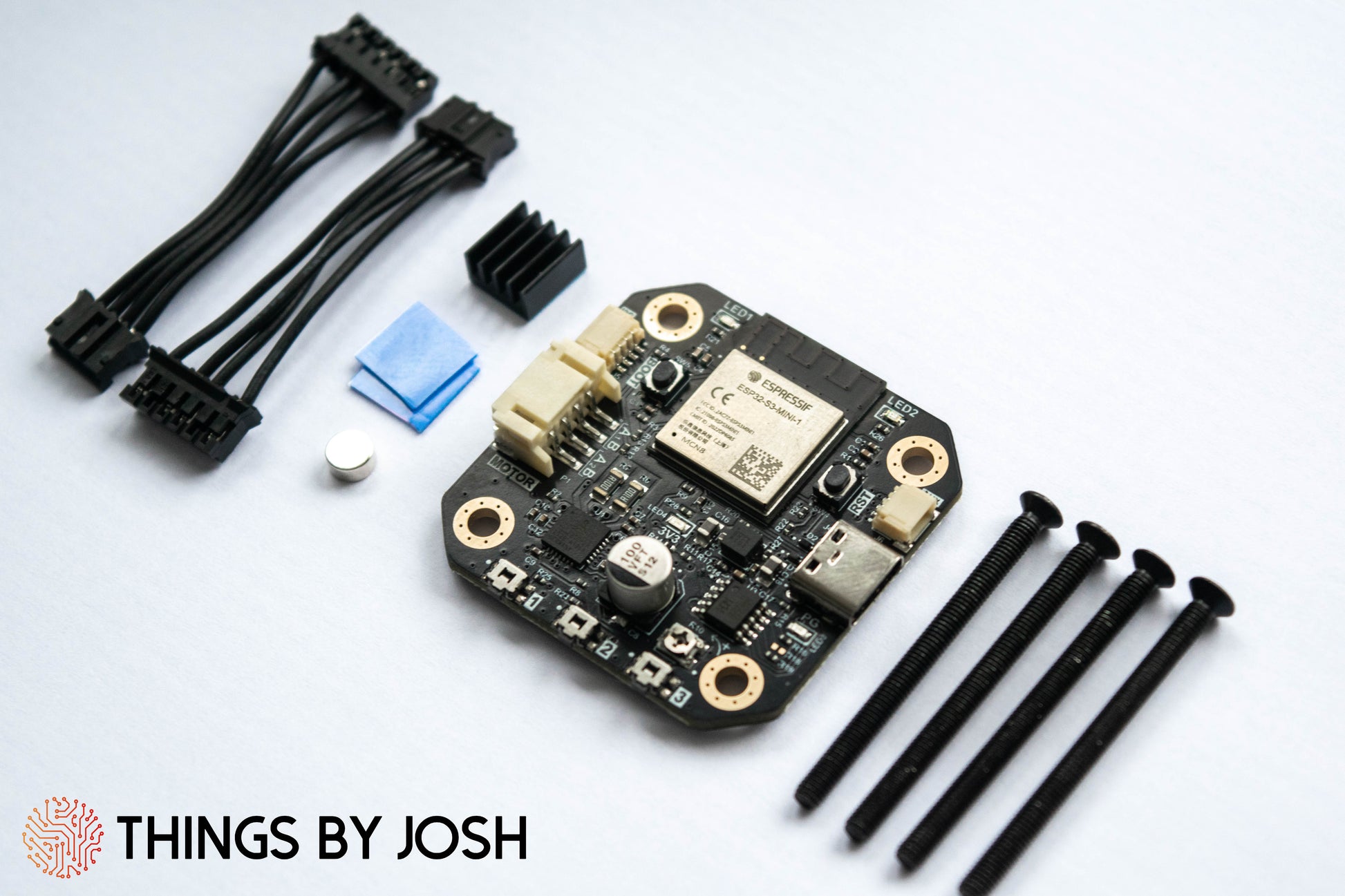

Full Kit:

PD Stepper PCB
Polycarbonate cover (Injection Molded)
Aluminium heat spreader/spacer (Black Anodized)
Mounting hardware (4x M3*40mm)
2x Motor wires (one for each possible motor pinout)
Encoder magnet
Large Heatsink
Small Heatsink

Partial Kit:

PD Stepper PCB
Mounting hardware (4x M3*40mm)
2x Motor wires (one for each possible motor pinout)
Encoder magnet
Small Heatsink

Note: Nema17 Stepper motor NOT INCLUDED in any kits

Main Features:

TMC2209 Stepper Motor Driver: Incorporates the TMC2209 stepper motor driver, renowned for its silent operation, high precision, and advanced features such as stealthChop™, spreadCycle™ and sensorless homing, ensuring smooth, silent and efficient motor control.
USB PD Power: Utilizes the USB PD standard for power delivery, giving high power, a USB-C connector and no bulky 12 and 24V power bricks needed. USB PD along with the TMC2209 can drive a stepper motor with up to ~50W of power.
Form Factor: Super compact forma factor, designed to fit on the back of a common Nema 17 stepper motor
Onboard Rotary Position Sensor: Integrates the AS5600 magnetic rotary position sensor for accurate and reliable absolute angle measurement, enabling precise positioning and closed loop control of the stepper motor.
ESP32-S3 Control: The ESP32-S3 microcontroller serves as the brains of the system, providing ample processing power, built-in Wi-Fi and Bluetooth connectivity. As well as a rich ecosystem of development tools and libraries for easy customization and expansion such as ESPHome and ESPNow.
Auxiliary connectors and buttons for flexibility and expansion
Onboard 3.3V buck converter
Input for motor temperature measurement
